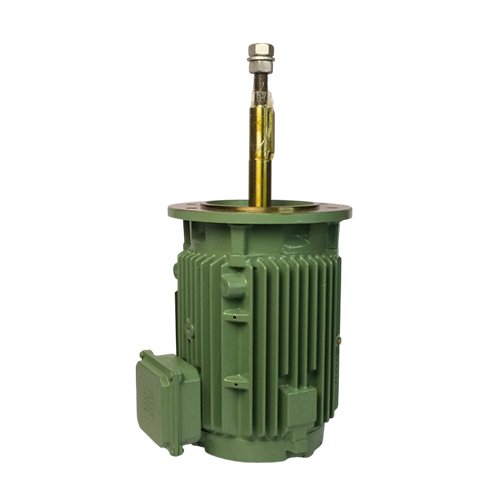

Hindustan Motor 1.5 HP / 960Rpm
- What machine we are using : GCT
- Brand of machine: GEM
- Model number of the machine : GCT 60, GCT 60 H , GCT 60 Q , GCT 60 HH
Availability : 12 Nos Deliverable in in 2-3 weeks
| HP | Torque | Start. Torque (STA) | Starting Time (STT) | Pull out Torque (POT) | Moment of Inertia (GD²) | Speed | Frame | Ambient | Enclosure | Insulation class | Duty | Ref. Standard | Overall Dim. | Bore Dim. | Key Dim. | Connection | Electrical Spec |
| 1.5 | 1.15Kgm | 5.0 | 2.20 | 2.40 | 0.0122Kgm² | 930 RPM | 90L | upto 1000m Above M.S.L | Totally Enclosure (TE) | Class F insulation with Temp. | S1 | IS/IEC60034-1 | 481x233x133(LxHxW) | Ø24x55mm(L) | 8x7x45mm(HxWxL) | Delta | Protection : IP55 Voltage : 415V±10% or as required Frequency : 50Hz±5% or as required Current : 2.9A Output Power : 1.10KW Pole : 6 Efficiency @ Full load : 75% Power factor @ fullload : 0.70 |
