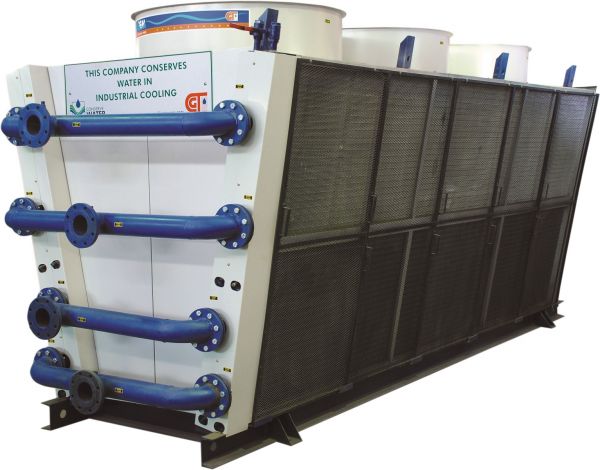

Dry Cooling Tower 50 TR
DRY COOLING TOWER is an equipment which is used to cool and maintain the temperature of process hot water at a particular level. This operates on the principle of heat transfer by a hear exchanger with extended fins. The fan is driven by an Electric motor.The aqua saver is built with corrosion resistant aluminium sheets.
SALIENT FEATURES:
SALIENT FEATURES:
- Design
- Casing
- Fill
- Sprinkler
- Axial Fan
- Motors
- Installation, Service & Maintenance
- ISO 9001:2015 Certified
- Made in India
Applications
- Automobile
- Food
- Plastic
- Power Plant
- Glass Manufacturing
- Textile
- PET Bottle
- Chemical & Fertilizer
- Air Conditioning
- Pharmaceutical
Availability : 10 Nos Deliverable in in 2-3 weeks
×
Download Catalog
| Model | Type | Coil Area (sq.ft.) | Sheet Metal Cover Material | Sheet Cover Painting | Structure Material | Structure Painting | Frame Material | Frame Painting | TUBE – Material | TUBE – Outer Diameter (mm) | TUBE – Thickness (mm) | TUBE – Quantity (Nos.) | FIN – Material | FIN – Coating | FIN – Thickness (mm) | FIN – Quantity | FIN – Type | FAN – Type | FAN – Material | FAN – Diameter (mm) | FAN – Speed (RPM) | FAN – Quantity (Nos.) | FAN – Balancing | MOTOR – Quantity (Nos.) | MOTOR – Power (HP / kW) | MOTOR – Rated Current (A) | MOTOR – Speed (RPM) | MOTOR – Voltage (V / Hz / Ph) | MOTOR – Standard | MOTOR – Insulation / Protection | MOTOR – Noise (dBA) | MOTOR – Make | Inlet / Outlet Connection | Pipe Leak Test | Overall Size (L × W × H) (mm) | Overall Weight (kg) |
| DCT 50 | Closed loop, Dry type | 50 | G.I Sheet | Powder Coating Colour Havells Grey / 60 microns DFT, curing 180°C (10 Min.) | M.S. – IS: 1173 & IS: 808 | RAL-7035 / 60 microns DFT, curing 180°C (10 Min.) | M.S. – IS: 1173 & IS: 808 – Sand Blasting | Epoxy Based Primer Single Coat, Paint Azure Blue RAL-5009. Min 60 micron DFT, as per Standard Engineering Practice | Copper – ASTM B-280 / IS: 2501 | 15.875 | 0.416 | 192 | Aluminium | Polymeric Based Epoxy Fincare Coating | 0.158 | 10 fins/inch | Sine Wave | Axial Flow | PA / PAG | 1060 | 960 | 2 | Dynamic (ISO: 1940-1972) Grade 6.3 | 2 | 5.0 / 3.75 | 7.5 | 960 | 415 / 50 / 3 | IEC 60034 | IP55 | Max. 88 ±2 @ 1 meter Distance | Siemens / ABB / Hindustan | 3" NB / 3" NB ANSI B16.5 150# Flange | Pneumatic Test @ 5 bar (g) | 3370 × 1620 × 1380 | 600 (Approx.) |
Ask a Question
The Dry Cooling Tower 50 TR is a genuine GEM Equipments system designed for industrial water cooling and heat rejection. It is compatible with GEM DCT 50 models. GEM Equipments Pvt. Ltd. is an ISO 9001:2015 certified, India-based manufacturer (since 1984) of compressed air dryers, cooling towers, industrial chillers, and compressed air treatment accessories, headquartered in Coimbatore, Tamil Nadu. All products listed on Gemspares.in are 100% genuine and sourced directly from GEM Equipments, ensuring reliable performance and long service life for your... Read more
The Dry Cooling Tower 50 TR is used across industries such as plastics and injection molding, pharmaceuticals, food and beverage processing, chemical and petrochemical processing, power generation, HVAC and commercial buildings, textiles, steel and metal processing, and general industrial manufacturing -- anywhere industrial processes, machinery, or HVAC systems generate heat that must be rejected efficiently. By cooling and recirculating process water, it reduces water wastage and lowers the load on chillers and other cooling equipment downstream. As a dry-type cooling tower, it eliminates evaporative water loss and reduces water treatment costs entirely, making it ideal for water-scarce locations and closed-loop systems. GEM Equipments Pvt. Ltd. is an ISO 9001:2015 certified, India-based manufacturer (since 1984) of compressed air dryers, cooling towers, industrial chillers, and compressed air treatment accessories, headquartered in Coimbatore, Tamil Nadu. The Dry Cooling Tower 50 TR is a genuine, reliable GEM Equipments solution built for industrial-scale water... Read more
The key specifications of the Dry Cooling Tower 50 TR are — Type: Closed loop, Dry type; Coil Area (sq.ft.): 50; Sheet Metal Cover Material: G.I Sheet; Structure Material: M.S. – IS: 1173 & IS: 808. These specifications are based on the standard GEM Equipments design; always verify against your machine's requirement before use. GEM Equipments Pvt. Ltd. is an ISO 9001:2015 certified, India-based manufacturer (since 1984) of compressed air dryers, cooling towers, industrial chillers, and compressed air treatment accessories, headquartered in Coimbatore, Tamil... Read more
The Dry Cooling Tower 50 TR is compatible with GEM DCT 50 models. Always cross-check your machine's model number, or contact our support team to confirm fitment. GEM Equipments Pvt. Ltd. is an ISO 9001:2015 certified, India-based manufacturer (since 1984) of compressed air dryers, cooling towers, industrial chillers, and compressed air treatment accessories, headquartered in Coimbatore, Tamil Nadu. All spare parts on Gemspares.in are genuine and sourced directly from the manufacturer.
Yes. The Dry Cooling Tower 50 TR listed on Gemspares.in is a 100% genuine GEM Equipments system, not a duplicate or third-party replica. GEM Equipments Pvt. Ltd. is an ISO 9001:2015 certified, India-based manufacturer (since 1984) of compressed air dryers, cooling towers, industrial chillers, and compressed air treatment accessories, headquartered in Coimbatore, Tamil Nadu. For pricing, availability, or technical support, you can reach the GEM Equipments team directly through Gemspares.in — we support customers across Tamil Nadu and pan India from our Coimbatore, Delhi, Mumbai, and Hyderabad... Read more
