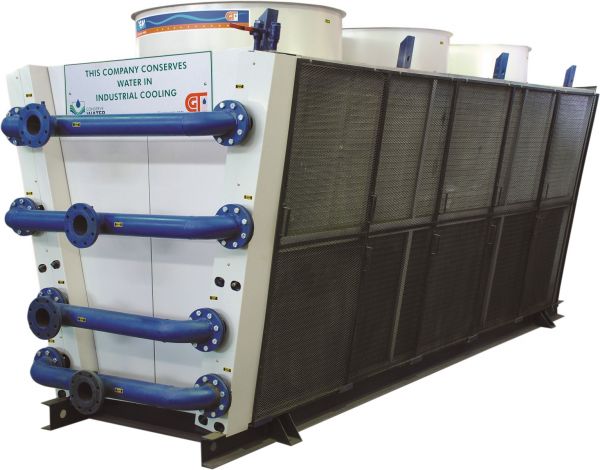

Dry Cooling Tower 60 TR
In stock
DRY COOLING TOWER is an equipment which is used to cool and maintain the temperature of process hot water at a particular level. This operates on the principle of heat transfer by a hear exchanger with extended fins. The fan is driven by an Electric motor.The aqua saver is built with corrosion resistant aluminium sheets.
SALIENT FEATURES:
SALIENT FEATURES:
- Design
- Casing
- Fill
- Sprinkler
- Axial Fan
- Motors
- Installation, Service & Maintenance
Availability : 10 Nos Deliverable in in 2-3 weeks
×
Download Catalog
| Model | Type | Coil Area (sq.ft.) | Sheet Metal Cover Material | Sheet Cover Painting | Structure Material | Structure Painting | Frame Material | Frame Painting | TUBE – Material | TUBE – Outer Diameter (mm) | TUBE – Thickness (mm) | TUBE – Quantity (Nos.) | FIN – Material | FIN – Coating | FIN – Thickness (mm) | FIN – Quantity | FIN – Type | FAN – Type | FAN – Material | FAN – Diameter (mm) | FAN – Speed (RPM) | FAN – Quantity (Nos.) | FAN – Balancing | MOTOR – Quantity (Nos.) | MOTOR – Power (HP / kW) | MOTOR – Rated Current (A) | MOTOR – Speed (RPM) | MOTOR – Voltage (V / Hz / Ph) | MOTOR – Standard | MOTOR – Insulation / Protection | MOTOR – Noise (dBA) | MOTOR – Make | Inlet / Outlet Connection | Pipe Leak Test | Overall Size (L × W × H) (mm) | Overall Weight (kg) |
| DCT 40 | Closed loop, Dry type | 40 | G.I Sheet | Powder Coating, Havells Grey, 60 microns DFT, curing 180°C (10 min) | M.S. – IS:1173 & IS:808 | RAL-7035, 60 microns DFT, curing 180°C (10 min) | M.S. – IS:1173 & IS:808 – Sand Blasting | Epoxy Based Primer single coat; Paint Azure Blue RAL-5009; min 60 micron DFT (Std. Engineering Practice) | Copper – ASTM B-280 / IS:2501 | 15.875 | 0.416 | 192 | Aluminium | Polymeric Based Epoxy Fincare Coating | 0.158 | 10 fins/inch | Sine Wave | Axial Flow | PA / PAG | 1060 | 960 | 2 | Dynamic (ISO:1940-1972) Grade 6.3 | 2 | 3.0 / 2.2 | 5.4 | 960 | 415 / 50 / 3 | IEC 60034 | IP55 | Max. 88 ±2 @ 1 m distance | Siemens / ABB / Hindustan | 3" NB / 3" NB ANSI B16.5 150# Flange | Pneumatic Test @ 5 bar (g) | 3080 × 1620 × 1380 | 480 (Approx.) |
