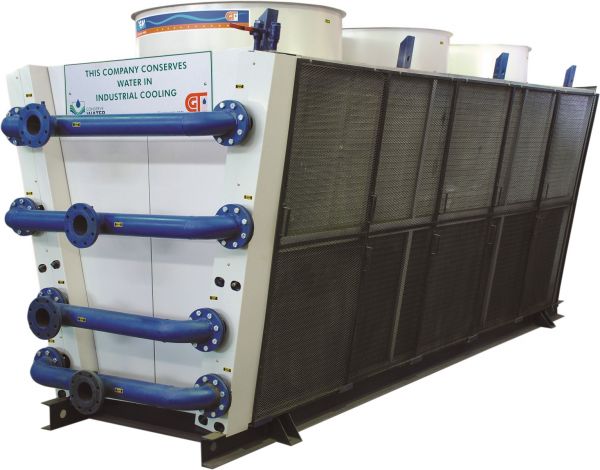

Dry Cooling Tower 140 TR
In stock
DRY COOLING TOWER is an equipment which is used to cool and maintain the temperature of process hot water at a particular level. This operates on the principle of heat transfer by a hear exchanger with extended fins. The fan is driven by an Electric motor.The aqua saver is built with corrosion resistant aluminium sheets.
SALIENT FEATURES:
SALIENT FEATURES:
- Design
- Casing
- Fill
- Sprinkler
- Axial Fan
- Motors
- Installation, Service & Maintenance
Availability : 100 Nos Deliverable in in 2-3 weeks
×
Download Catalog
| Model | Type | Coil Area (sq.ft.) | Sheet Metal Cover Material | Sheet Cover Painting | Structure Material | Structure Painting | Frame Material | Frame Painting | TUBE – Material | TUBE – Outer Diameter (mm) | TUBE – Thickness (mm) | TUBE – Quantity (Nos.) | FIN – Material | FIN – Coating | FIN – Thickness (mm) | FIN – Quantity | FIN – Type | FAN – Type | FAN – Material | FAN – Diameter (mm) | FAN – Speed (RPM) | FAN – Quantity (Nos.) | FAN – Balancing | MOTOR – Quantity (Nos.) | MOTOR – Power (HP / kW) | MOTOR – Rated Current (A) | MOTOR – Speed (RPM) | MOTOR – Voltage (V / Hz / Ph) | MOTOR – Standard | MOTOR – Insulation / Protection | MOTOR – Noise (dBA) | MOTOR – Make | Inlet / Outlet Connection | Pipe Leak Test | Overall Size (L × W × H) (mm) | Overall Weight (kg) |
| DCT 120 | Closed loop, Dry type | 120 | G.I Sheet | Powder Coating Colour Havells Grey / 60 microns DFT, curing 180°C (10 Min.) | M.S. – IS: 1173 & IS: 808 | RAL-7035 / 60 microns DFT, curing 180°C (10 Min.) | M.S. – IS: 1173 & IS: 808 – Sand Blasting | Epoxy Based Primer Single Coat, Paint Azure Blue RAL-5009. Min 60 micron DFT, as per Standard Engineering Practice | Copper – ASTM B-280 / IS: 2501 | 15.875 | 0.416 | 384 | Aluminium | Polymeric Based Epoxy Fincare Coating | 0.158 | 10 fins/inch | Sine Wave | Axial Flow | PA / PAG | 1200 | 960 | 2 | Dynamic (ISO: 1940-1972) Grade 6.3 | 2 | 7.5 / 5.5 | 12 | 960 | 415 / 50 / 3 | IEC 60034 | IP55 | Max. 88 ±2 @ 1 meter Distance | Siemens / ABB / Hindustan | 4" NB / 4" NB ANSI B16.5 150# Flange | Pneumatic Test @ 5 bar (g) | 3312 × 1780 × 2370 | 1420 (Approx.) |
